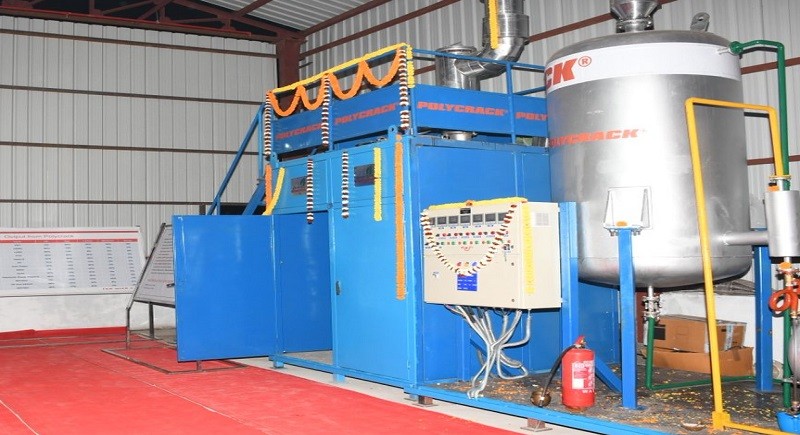

Indian Railways has commissioned the country's first governmental Waste to Energy Plant, having the capacity of 500 Kg waste per day, in Mancheswar Carriage Repair Workshop at Bhubaneswar in East Coast Railway.
Railway Board Member (Rolling Stock) Rajesh Agarwal inaugurated this plant on 22nd January 2020 along with GM, East Coast Railway. This Waste to Energy Plant has been constructed in three months.
This Waste to Energy Plant, a patented technology called Polycrack, is first-of-its-kind in Indian Railways and fourth in India.
It is the world's first patented heterogeneous catalytic process which converts multiple feedstocks into hydrocarbon liquid fuels, gas, carbon and water.
Polycrack Plant can be fed with
- All types of Plastic,
- Petroleum sludge,
- Un-segregated MSW (Municipal Solid Waste) with moisture up to 50%,
- E-Waste,
- Automobile fluff,
- Organic waste including bamboo, garden waste etc
- Jatropha fruit
- palm bunch.
Waste generated from Mancheswar Carriage Repair Workshop, Coaching Depot and Bhubaneswar Railway Station will be feeder material for this plant.
The process is a closed-loop system and does not emit any hazardous pollutants into the atmosphere.
The combustible, non-condensed gases are re-used for providing energy to the entire system and thus, the only emission comes from the combustion of gaseous fuels.
The emissions from the combustion are found to be much less than prescribed environmental norms.
This process will produce energy in the form of Light Diesel Oil which is used to light furnaces.
Features of Polycrack technology
Polycrack has the following advantages over the conventional approach of treating solid waste:-
- Pre-segregation of waste is not required to reform the waste. Waste, as collected, can be directly fed into Polycrack.
- It has a high tolerance to moisture hence drying of waste is not required. Waste is processed and reformed within 24 hours.
- It is an enclosed unit hence the working environment is dust-free. Excellent air quality surrounding the plant.
- Biological decomposition is not allowed as the Waste is treated as it is received.
- The footprint of the plant is small hence the area required for installing the plant is less when compared with the conventional method of processing.
- All constituents are converted into valuable energy thereby making it Zero Discharge Process.
- Gas generated in the process is re-used to provide energy to the system thereby making it self-reliant and also bring down the operating cost.
- There is no atmospheric emission during the process unlike other conventional methods except for combustion gases which have pollutants less than the prescribed norms the world over.
- Operates around 450 degrees, making it a low-temperature process when compared with other options.
- Safe and efficient system with built-in safety features enables even an unskilled user to operate the machine with ease.
- Low capital cost and low operating cost.
- Fully automated system requires minimum manpower.
Awards and recognition
- Best innovation Gold Medal in 2007 by Lockheed Martin, Dept of Science & Technology, Govt. of India, FICCI.
- Best Innovation Gold Medal 2007.
- Best Innovation Gold Medal 2008.
- Best Innovation Gold Medal 2009.
- Nominated for Tech-Museum Awards 2008.
- Frost & Sullivan – Global Innovation and Leadership Award -2011 and IGCW-2011 – Best Green Chemistry Innovation Award.
Brief description of waste to energy plant
Total plant installation cost: Rs 1.79 crore
Date of commissioning: 22 Jan 2020
Estimated income from the byproducts: Rs 17.5 Lakhs per annum
Maintenance cost: Rs 10.4 Lakhs per annum
Capacity: 500kg/ Batch
